Solo Brewing System dead space measurements. If you are using Beersmith, please find the Solo profile here.

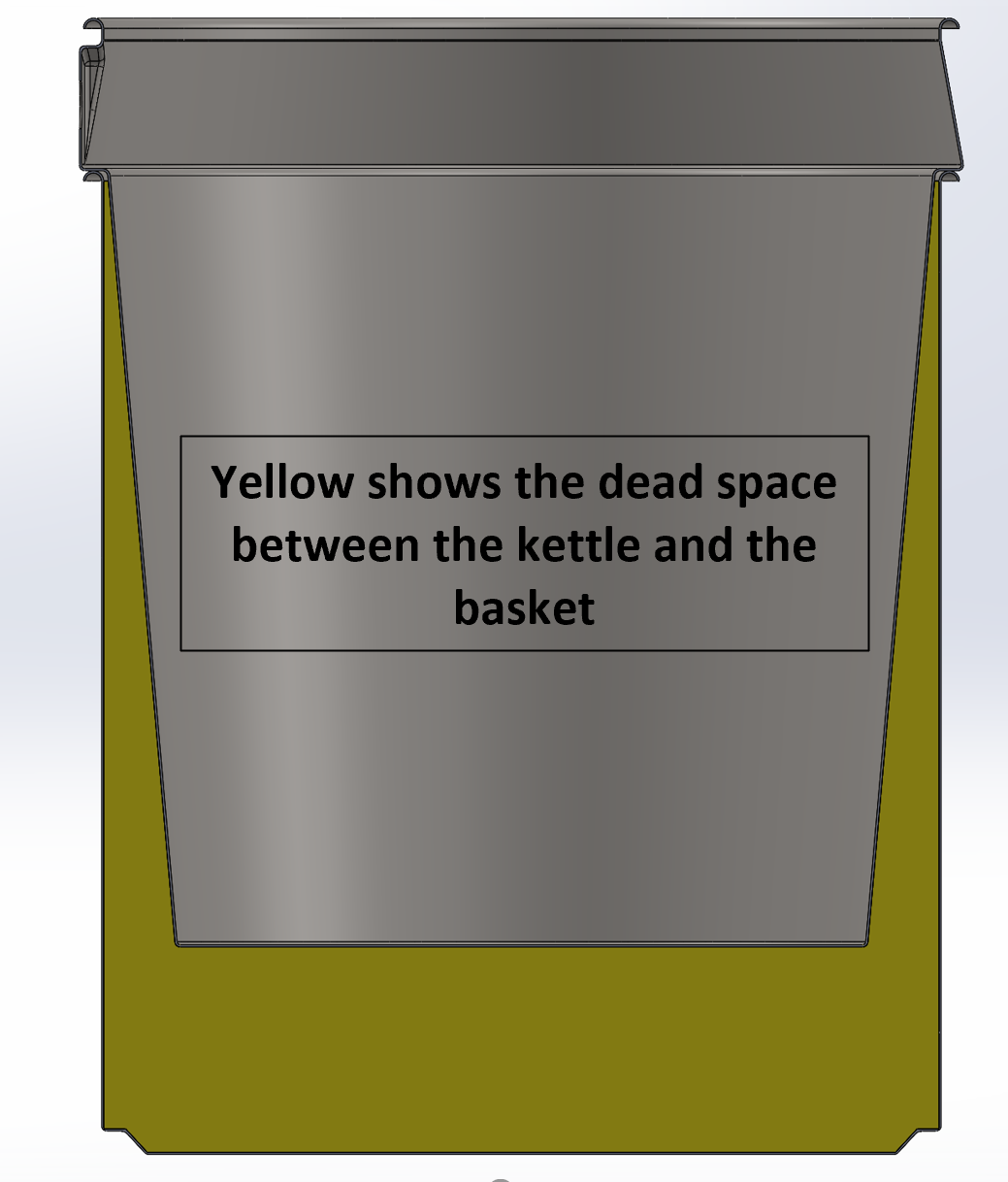

Dead Space (Yellow in photo)

  • 20 Gallon:  7.7 Gallons
  • 15 Gallon:  6.3 Gallons
  • 10 Gallon:  4.7 Gallons

  • When there is liquid in the kettle, dead space volumes are below.
    Gallon Marker (gallons)Dead Space (gallons)
    5.55.32
    65.46
    6.55.61
    75.74
    7.55.88
    86
    8.56.13
    96.25
    9.56.37
    106.48
    10.56.59
    116.7
    11.56.8
    126.9
    12.56.99
    137.08
    13.57.17
    147.25
    14.57.32
    157.4
    15.57.46
    167.53
    16.57.59
    177.64
    17.57.7
    187.74
    18.57.78
    197.82
    19.57.86
    207.89
